OGLFT::Raster Class Reference

#include <moOGLFT.h>

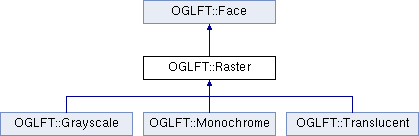

Inheritance diagram for OGLFT::Raster:
OGLFT::Face OGLFT::Grayscale OGLFT::Monochrome OGLFT::Translucent

Public Member Functions

 Raster (const char *filename, float point_size=12, FT_UInt resolution=100)

 Raster (FT_Face face, float point_size=12, FT_UInt resolution=100)

virtual ~Raster (void)

void setCharacterRotationZ (GLfloat character_rotation_z)

GLfloat characterRotationZ (void) const

double height (void) const

BBox measure (unsigned char c)

BBox measure (const char *s)

- Public Member Functions inherited from OGLFT::Face
 Face (const char *filename, float point_size=12, FT_UInt resolution=100)

 Face (FT_Face face, float point_size=12, FT_UInt resolution=100)

virtual ~Face (void)

bool isValid (void) const

bool addAuxiliaryFace (const char *filename)

bool addAuxiliaryFace (FT_Face face)

void setCompileMode (enum GlyphCompileMode compile_mode)

enum GlyphCompileMode compileMode (void) const

void setPointSize (float point_size)

float pointSize (void)

void setResolution (FT_UInt resolution)

FT_UInt resolution (void)

void setAdvance (bool advance)

bool advance (void) const

void setForegroundColor (GLfloat red=0.0, GLfloat green=0.0, GLfloat blue=0.0, GLfloat alpha=1.0)

void setForegroundColor (const GLfloat foreground_color[4])

GLfloat foregroundRed (void) const

GLfloat foregroundGreen (void) const

GLfloat foregroundBlue (void) const

GLfloat foregroundAlpha (void) const

void setBackgroundColor (GLfloat red=1.0, GLfloat green=1.0, GLfloat blue=1.0, GLfloat alpha=0.0)

void setBackgroundColor (const GLfloat background_color[4])

GLfloat backgroundRed (void) const

GLfloat backgroundGreen (void) const

GLfloat backgroundBlue (void) const

GLfloat backgroundAlpha (void) const

void setCharacterRotationReference (unsigned char c)

void setStringRotation (GLfloat string_rotation)

GLfloat stringRotation (void) const

void setHorizontalJustification (enum HorizontalJustification horizontal_justification)

enum HorizontalJustification horizontalJustification (void) const

void setVerticalJustification (enum VerticalJustification vertical_justification)

enum VerticalJustification verticaljustification (void) const

void setCharacterDisplayLists (const DisplayLists &character_display_lists)

DisplayListscharacterDisplayLists (void)

virtual BBox measureRaw (const char *s)

GLuint compile (const char *s)

GLuint compile (unsigned char c)

void draw (const char *s)

void draw (unsigned char c)

void draw (GLfloat x, GLfloat y, unsigned char c)

void draw (GLfloat x, GLfloat y, GLfloat z, unsigned char c)

void draw (GLfloat x, GLfloat y, const char *s)

void draw (GLfloat x, GLfloat y, GLfloat z, const char *s)

int ascender (void)

int descender (void)


Protected Attributes

GLfloat character_rotation_z_

- Protected Attributes inherited from OGLFT::Face
std::vector< FaceData > faces_

bool valid_
 Did a font load OK? More...

enum GlyphCompileMode compile_mode_
 Glyph display list creation mode. More...

float point_size_
 Nominal point size. More...

FT_UInt resolution_
 Display resolution in pixels per inch. More...

bool advance_
 Does rendering text affect the MODELVIEW matrix? More...

GLfloat foreground_color_ [4]

GLfloat background_color_ [4]
 Background color (what modes would use this?) More...

enum HorizontalJustification horizontal_justification_
 PHIGS-like horizontal positioning of text. More...

enum VerticalJustification vertical_justification_
 PHIGS-like vertical positioning of text. More...

GLfloat string_rotation_
 Rotate an entire string in the Z plane. More...

FT_UInt rotation_reference_glyph_

FT_Face rotation_reference_face_
 The rotation reference character could be in any face. More...

GLfloat rotation_offset_y_

GlyphDLists glyph_dlists_
 Cache of defined glyph display lists. More...

DisplayLists character_display_lists_


Additional Inherited Members

- Public Types inherited from OGLFT::Face
enum  HorizontalJustification { LEFT, ORIGIN, CENTER, RIGHT }

enum  VerticalJustification { BOTTOM, BASELINE, MIDDLE, TOP }

enum  GlyphCompileMode { COMPILE, IMMEDIATE }

- Protected Types inherited from OGLFT::Face
typedef std::map< FT_UInt, GLuint > GlyphDLists
 Type of the cache of defined glyph to display list mapping. More...

typedef GlyphDLists::const_iterator GDLCI

typedef GlyphDLists::iterator GDLI

- Protected Member Functions inherited from OGLFT::Face
virtual void renderGlyph (FT_Face face, FT_UInt glyph_index)=0


Detailed Description

This is the base class of the raster styles: bitmap, grayscale and translucent.

In the raster styles, FreeType's rasterizer is used to generate raster images of each glyph.

Definition at line 1699 of file moOGLFT.h.

Constructor & Destructor Documentation

OGLFT::Raster::Raster ( const char *  filename,
float  point_size = 12,
FT_UInt  resolution = 100
)
Parameters
filenamethe filename which contains the font face.
point_sizethe initial point size of the font to generate. A point is essentially 1/72th of an inch. Defaults to 12.
resolutionthe pixel density of the display in dots per inch (DPI). Defaults to 100 DPI.

Definition at line 1317 of file moOGLFT.cpp.

OGLFT::Raster::Raster ( FT_Face  face,
float  point_size = 12,
FT_UInt  resolution = 100
)
Parameters
faceopen FreeType FT_Face.
point_sizethe initial point size of the font to generate. A point is essentially 1/72th of an inch. Defaults to 12.
resolutionthe pixel density of the display in dots per inch (DPI). Defaults to 100 DPI.

Definition at line 1325 of file moOGLFT.cpp.

OGLFT::Raster::~Raster ( void  )
virtual

The destructor doesn't do anything in particular.

Definition at line 1340 of file moOGLFT.cpp.

Member Function Documentation

GLfloat OGLFT::Raster::characterRotationZ ( void  ) const
inlinevirtual
Returns
the character rotation in the Z direction.

Implements OGLFT::Face.

Definition at line 1735 of file moOGLFT.h.

double OGLFT::Raster::height ( void  ) const
virtual
Returns
the height (i.e., line spacing) at the current character size.

Implements OGLFT::Face.

Definition at line 1354 of file moOGLFT.cpp.

BBox OGLFT::Raster::measure ( unsigned char  c)
virtual

Implement measuring a character in a raster face.

Parameters
cthe (latin1) character to measure
Returns
the bounding box of c.

Implements OGLFT::Face.

Definition at line 1362 of file moOGLFT.cpp.

BBox OGLFT::Raster::measure ( const char *  s)
inlinevirtual

Measure a string of characters. Note: currently, this merely calls Face's measure routine.

Parameters
sstring of (latin1) characters to measure
Returns
the bounding box of s.

Reimplemented from OGLFT::Face.

Definition at line 1765 of file moOGLFT.h.

void OGLFT::Raster::setCharacterRotationZ ( GLfloat  character_rotation_z)
virtual

Set the individual character rotation in the Z direction.

Parameters
character_rotation_zangle in degrees of Z rotation.

Implements OGLFT::Face.

Definition at line 1345 of file moOGLFT.cpp.

Member Data Documentation

GLfloat OGLFT::Raster::character_rotation_z_
protected

Raster glyph can be rotated in the Z plane (in addition to the string rotation).

Definition at line 1704 of file moOGLFT.h.


The documentation for this class was generated from the following files:
