Recurso ( objeto para cargar y manipular objetos f�sicos de datos de im�genes, audio, video, 3d, 2d, fuentes, shaders y de cualquier otro tipo extendible por un plugin ) More...

#include <moResourceManager.h>

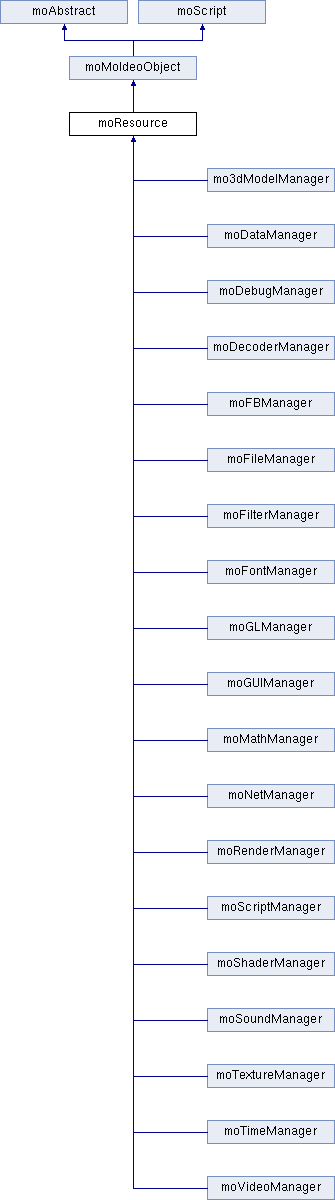

Inheritance diagram for moResource:

Public Member Functions
	moResource ()

virtual	~moResource ()

virtual MOboolean	Init ()

virtual MOboolean	Finish ()

moResourceType	GetResourceType ()

Public Member Functions inherited from moMoldeoObject
	moMoldeoObject ()

	moMoldeoObject (moMoldeoObjectType p_type)

virtual	~moMoldeoObject ()

virtual MOboolean	Init (moResourceManager *p_pResources)

virtual MOboolean	CreateConnectors ()

virtual MOboolean	UpdateConnectors ()

virtual MOboolean	RefreshValue (moParam &param, int value_index)

virtual MOboolean	ResolveValue (moParam &param, int value_index, bool p_refresh=false)

virtual void	Update (moEventList *p_EventList)

void	SetResourceManager (moResourceManager *p_pResourceManager)

moResourceManager *	GetResourceManager ()

MOint	GetId () const

void	SetId (MOint p_id)

moMoldeoObjectType	GetType () const

void	SetType (moMoldeoObjectType p_type)

void	SetName (const moText &p_name)

void	SetLabelName (const moText &p_labelname)

void	SetKeyName (const moText &p_keyname)

const moText &	GetKeyName () const

const moText &	GetName () const

const moText &	GetLabelName () const

moConfig *	GetConfig ()

void	SyncConnections ()

virtual int	Save (const moText &p_save_filename=moText(""))

void	SetConfigName (const moText &p_configname)

const moText &	GetConfigName () const

const moText &	GetDescription () const
	Devuelve al descripci�n del objeto. More...

void	SetDescription (const moText &p_Description)
	Fija la descripci�n de este objeto. More...

const moMobDefinition &	GetMobDefinition () const

void	SetMobDefinition (const moMobDefinition &p_MobDef)

virtual moConfigDefinition *	GetDefinition (moConfigDefinition *p_configdefinition=NULL)

moOutlets *	GetOutlets ()

moInlets *	GetInlets ()

MOint	GetInletIndex (moText p_connector_name) const

MOint	GetOutletIndex (moText p_connector_name) const

virtual void	RegisterFunctions ()
	beware ! call only once or die!!! More...

virtual int	ScriptCalling (moLuaVirtualMachine &vm, int iFunctionNumber)

virtual void	HandleReturns (moLuaVirtualMachine &vm, const char *strFunc)

virtual const moMobState &	GetState () const

virtual bool	SetState (const moMobState &p_MobState)

virtual void	Activate ()

virtual void	Deactivate ()

virtual bool	Activated () const

virtual void	Select ()

virtual void	Unselect ()

virtual bool	Selected () const

virtual void	SetConsoleParamIndex (MOint p_paramindex)

virtual void	SetConsoleValueIndex (MOint p_valueindex)

virtual const moText &	ToJSON ()

Public Member Functions inherited from moAbstract
	moAbstract ()

virtual	~moAbstract ()

MOboolean	Initialized ()
	Pregunta si est� inicializado. More...

Public Member Functions inherited from moScript
	moScript ()

virtual	~moScript (void)

void	InitScript ()

void	FinishScript ()

bool	IsInitialized ()

bool	CompileFile (const char *strFilename)

bool	CompileBuffer (unsigned char *pbBuffer, size_t szLen)

int	RegisterFunction (const char *strFuncName, moScript::Function &fun)

int	RegisterFunction (const char *strFuncName)

int	RegisterBaseFunction (const char *strFuncName)

bool	SelectScriptFunction (const char *strFuncName)

void	AddFunctionParam (int iInt)

void	AddFunctionParam (float fFloat)

void	AddFunctionParam (char *string)

bool	RunSelectedFunction (int nReturns=0)

bool	ScriptHasFunction (const char *strScriptName)

int	methods (void)

virtual int	ResetScriptCalling ()

virtual int	NextScriptCalling ()

moLuaVirtualMachine &	mvm (void)

Protected Member Functions
void	SetResourceType (moResourceType p_restype)

Protected Member Functions inherited from moMoldeoObject
virtual void	LoadDefinition ()

virtual void	ScriptExeInit ()
	Corre la funcion de script Run o Compila el nuevo script. More...

virtual void	ScriptExeRun ()

virtual void	ScriptExeUpdate ()

virtual void	ScriptExeFinish ()

void	SetScript (const moText &p_script)

int	luaPushDebugString (moLuaVirtualMachine &vm)
	Funci�n de impresi�n de cadena de car�cteres c�moda para la depuraci�n More...

int	luaGetResourceManager (moLuaVirtualMachine &vm)
	Devuelve el objeto de moResourceManager para el manejo de recursos: texturas, videos, archivos, etc.. More...

int	luaSetPreconf (moLuaVirtualMachine &vm)
	functions to access moConfig data More...

int	luaGetPreconf (moLuaVirtualMachine &vm)

int	luaGetParamIndex (moLuaVirtualMachine &vm)

int	luaGetCurrentValue (moLuaVirtualMachine &vm)

int	luaSetCurrentValue (moLuaVirtualMachine &vm)

int	luaGetValuesCount (moLuaVirtualMachine &vm)

int	luaGetInletIndex (moLuaVirtualMachine &vm)

int	luaGetInletData (moLuaVirtualMachine &vm)

int	luaSetInletData (moLuaVirtualMachine &vm)

int	luaGetTrackerSystemData (moLuaVirtualMachine &vm)

int	luaGetTrackerFeaturesCount (moLuaVirtualMachine &vm)

int	luaGetTrackerValidFeatures (moLuaVirtualMachine &vm)

int	luaGetTrackerFeature (moLuaVirtualMachine &vm)

int	luaGetTrackerVariance (moLuaVirtualMachine &vm)

int	luaGetTrackerBarycenter (moLuaVirtualMachine &vm)

int	luaGetTrackerAcceleration (moLuaVirtualMachine &vm)

int	luaGetTrackerVelocity (moLuaVirtualMachine &vm)

int	luaGetTrackerZone (moLuaVirtualMachine &vm)

int	luaGetTrackerHistory (moLuaVirtualMachine &vm)

int	luaStartTrackerHistory (moLuaVirtualMachine &vm)
	devuelve la cantidad de records registrados?! More...

int	luaPauseTrackerHistory (moLuaVirtualMachine &vm)
	arranca la grabacion More...

int	luaContinueTrackerHistory (moLuaVirtualMachine &vm)

int	luaStopTrackerHistory (moLuaVirtualMachine &vm)

int	luaGetHistoryRecord (moLuaVirtualMachine &vm)
	Devuelve...el baricentro. More...

int	luaGetHistoryBarycenter (moLuaVirtualMachine &vm)
	va de parametro el id del tracker, el id de la instancia More...

int	luaGetHistoryVariance (moLuaVirtualMachine &vm)
	Devuelve las varianzas. More...

int	luaGetHistoryBounding (moLuaVirtualMachine &vm)
	Devuelve los rectangulos. More...

int	luaGetHistoryAverage (moLuaVirtualMachine &vm)
	Devuelve los promedios. More...

int	luaGetHistoryMinMax (moLuaVirtualMachine &vm)
	Devuelve el rectangulo max, min. More...

Additional Inherited Members
Public Types inherited from moScript
typedef int(*	Function )(moLuaVirtualMachine &vm)

Public Attributes inherited from moAbstract
MOboolean	m_bInitialized
	Valor de inicializaci�n More...

Public Attributes inherited from moScript
Function	Functions [255]

Static Public Attributes inherited from moAbstract
static moDebug *	MODebug2 = new moDebug()
	Clase de impresi�n de errores para depuraci�n More...

static moTextHeap *	MODebug = new moTextHeap()
	Lista de textos. More...

Protected Attributes inherited from moMoldeoObject
moText	m_FullJSON

moText	m_Script

moMobDefinition	m_MobDefinition

moMobState	m_MobState
	Moldeo Object State. More...

moConfig	m_Config
	Configuraci�n de par�metros del objeto. More...

moResourceManager *	m_pResourceManager
	Puntero al administrador de recursos. More...

moOutlets	m_Outlets
	Conectores de salida, Arreglo de moOutlet's. More...

moInlets	m_Inlets
	Conectores de entrada, Arreglo de moInlet's. More...

moInlet *	InletScreenWidth

moInlet *	InletScreenHeight

moInlet *	InletTimeabs

moInlet *	InletPreconfig

MOboolean	m_bConnectorsLoaded

int	__iscript

Protected Attributes inherited from moScript
bool	m_initialized

int	m_nMethods

int	m_iThisRef

int	m_nArgs

const char *	m_strFunctionName

int	m_iMethodBase

int	m_iMethodBaseIterator
	actual class index method base More...

int	m_iMethodBaseAncestors
	actual class iterator index method base More...

int	m_MethodBases [256]
	increment on each call to RegisterFunctions More...

Static Protected Attributes inherited from moScript
static moLuaVirtualMachine	m_vm

static moLuaDebugger	m_dbg

Detailed Description

Recurso ( objeto para cargar y manipular objetos f�sicos de datos de im�genes, audio, video, 3d, 2d, fuentes, shaders y de cualquier otro tipo extendible por un plugin )

Los recursos son aquellos objetos que implementan funciones de tratamiento de datos, generalmente localizados en dispositivos f�sicos, locales o remotos,o que tienen por destino alg�n tipo de representaci�n.

Aquellos recursos predeterminados dentro de la librer�a de Moldeo conforman la columna vertebral de las funcionalidades del Core de Moldeo. Estos son: moRenderManager, moGLManager, moTextureManager, mo3dModelManager, moShaderManager, moVideoManager, moSoundManager, moScriptManager, moTimeManager, moFBManager, moMathManager

Un plugin derivado de moResourcePlugin es usado t�picamente para acceder a archivos de distintos formatos para luego administrar estos contenidos en un arreglo interno din�mico evitando redundancias de datos.

Un ejemplo ser�a el moTextureManager, que administrar la carga de im�genes en texturas de opengl.

Otro ejemplo ser�a el mo3dModelManager, que administrar la carga de objeto 3d, en este caso del formato .3ds. El mo3dModelManager a su vez depende del moTextureManager para cargar las texturas especificadas por los materiales de los modelos tridimensionales. Mantener esta coherencia de los datos en Moldeo es una de las caracter�sticas importantes de su arquitectura.

See also: moResourceType; moMoldeoObject; moTextureManager; mo3dModelManager

Definition at line 152 of file moResourceManager.h.

Constructor & Destructor Documentation

moResource::moResource ( )

constructor gen�rico de la clase.

moResource::~moResource ( )

virtual

constructor gen�rico de la clase.

Definition at line 59 of file moResourceManager.cpp.

Member Function Documentation

MOboolean moResource::Finish ( )

virtual

constructor gen�rico de la clase.

Reimplemented from moMoldeoObject.

Reimplemented in moFilterManager, moGUIManager, moVideoManager, moDataManager, moSoundManager, mo3dModelManager, moFileManager, moRenderManager, moGLManager, moNetManager, moTextureManager, moFontManager, moDecoderManager, moTimeManager, moShaderManager, moFBManager, moScriptManager, moMathManager, and moDebugManager.

Definition at line 83 of file moResourceManager.cpp.

moResourceType moResource::GetResourceType ( )

devuelve el tipo de recurso

See also: moResourceType

Definition at line 89 of file moResourceManager.cpp.

MOboolean moResource::Init ( )

virtual

constructor gen�rico de la clase.

Reimplemented from moMoldeoObject.

Reimplemented in moFilterManager, moGUIManager, moVideoManager, moDataManager, moSoundManager, mo3dModelManager, moFileManager, moNetManager, moGLManager, moTextureManager, moFontManager, moDecoderManager, moTimeManager, moShaderManager, moFBManager, moScriptManager, moMathManager, and moDebugManager.

Definition at line 64 of file moResourceManager.cpp.

void moResource::SetResourceType ( moResourceType p_restype )

protected

Definition at line 96 of file moResourceManager.cpp.

The documentation for this class was generated from the following files:

libmoldeo/moResourceManager.h
libmoldeo/moResourceManager.cpp
